Features
  • Compact piezo nanopositioner
  • 200μm two-axis motion (XY)
  • Closed loop control
  • True flexure guided motion
  • Large sample mounting area


Typical Applications
  • AFM, NSOM, and other types of scanning probe microscopy (SPM)
  • XY precision alignment
  • Nanofabrication



Product Description

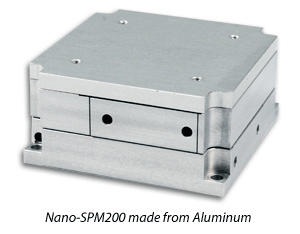

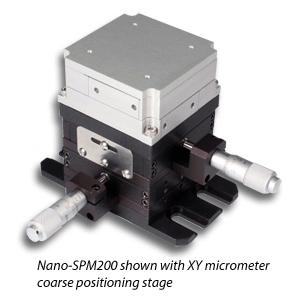

The Nano-SPM200 is a compact two axis (XY) piezo nanopositioning system constructed from aluminum. The compact design of the Nano-SPM200 makes it ideal for integration into scanning probe microscopy systems. Internal position sensors combined with the closed loop Nano-Drive controller to provide sub-nanometer positioning resolution and long term stability. Independent flexure guided motion for each axis provides mechanical isolation and ensures minimum cross-talk between axes. Samples can be mounted in any location on the flat top surface and secured with the four threaded mounting holes. The Nano-SPM200 is the ideal XY scanning stage for use with the MadPLL® system. See the SPM-M Kit for an example of how to combine Mad City Labs equipment to build an AFM or NSOM.



Technical Specifications

Range of motion (XY) 200 μm
Resolution
0.4 nm
Resonant Frequency (X) 300 Hz ±20%
Resonant Frequency (Y) 300 Hz ±20%
Stiffness 1.0 N/μm
Recommended max. load (horizontal)* 0.5 kg
Recommended max. load (vertical)* 0.2 kg
Body Material Aluminum
Controller Nano-Drive®
* Larger load requirements should be discussed with our engineering staff.
