Features
  • Low profile XYZ piezo nanpositioner
  • Unique design for multiwell plates and incubators
  • 200 μm range of motion (XYZ)
  • Closed loop control
  • High stability


Typical Applications
  • Optical microscopy, easy to retrofit
  • Optical trapping experiments
  • Fluorescence imaging
  • Alignment
  • Single molecule spectroscopy
  • Super resolution microscopy



Product Description

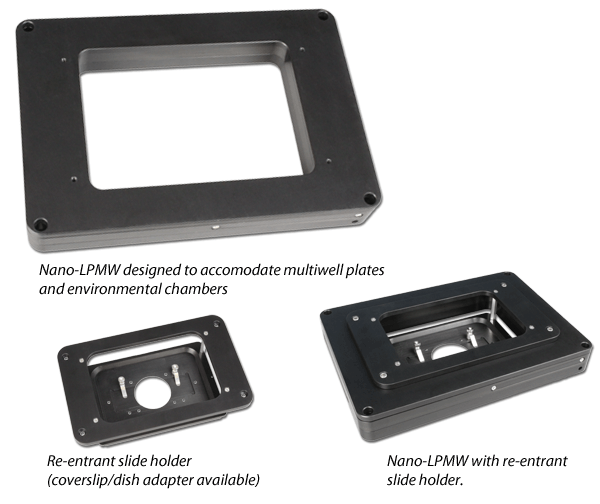

The Nano-LPMW is a unique 3 axis piezo nanopositioning system designed to hold multiwell plates, slides, dishes and environmental chambers. The Nano-LPMW has a low profile and extra-large center aperture with 200 micron range of motion in all three axes. The low height of the Nano- LPMW Series allows it to be easily integrated into existing inverted optical microscopes and is compatible with a lrange of microscope stages. Like the related Nano-LPS Series, the Nano-LPMW is ideal for demanding microscopy applications which require long range travel, high stability, and three axes of motion. The Nano-LPMW is the only 3 axis piezo nanopositioning system which can hold multiwell plates and incubators. Precise and repeatable motion is made possible through closed loop control combined with PicoQ® position sensors. For single axis multiwell plate nanopositioning, see the Nano-ZL Series.

Compatible Software Packages:



Technical Specifications

Range of motion 200 x 200 x 200 μm
Resolution 0.4 nm
Resonant Frequencies
X axis 105 Hz ±20%
Y axis 90 Hz ±20%
Z axis 195 Hz ±20%
θ roll, θ pitch (typical) ≤40 μrad
θ yaw (typical) ≤20 μrad
Recommended max. load (horizontal)* 0.5 kg
Recommended max. load (vertical)* 0.2 kg
Body Material Aluminum
Controller Nano-Drive®
Accessories Adapter plate to Ti-S-E/ER
Sample holders
Incubators
* Larger load requirements should be discussed with our engineering staff.
