Features
  • Lowest profile 2-axis piezo nanopositioner available
  • Large aperture
  • 50 μm x 50 μm, 100 μm x 100 μm, 200 μm x 200 μm, or 300 μm x 300 μm ranges of motion
  • Closed loop control
  • High stability

Typical Applications
  • Optical microscopy, easy to retrofit
  • Fluorescence imaging
  • Closed-loop AFM scanner
  • Nanolithography
  • Optical tweezers
  • Super resolution microscopy

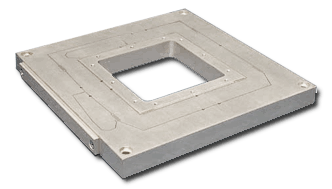

   two axis xy piezo nanopositioning systemside view of thin xy piezo stage

Product Description

The Nano-Bio Series are ultra low profile, two axis piezo nanopositioning systems. The low profile design allows the Nano-Bio Series to be easily integrated into existing inverted microscopes, AFMs and other instrumentation where space is limited. The large center aperture allows the Nano-Bio to accommodate the lenses of all major microscope manufacturers. The Nano-Bio Series includes internal position sensors with proprietary PicoQ® technology to provide absolute, repeatable position measurement and picometer accuracy under closed loop feedback control. The Nano-Bio100, Nano-Bio200, and Nano-Bio300 are constructed from aluminum and are ideal for optical microscopy. The invar Nano-Bio2M has increased thermal stability, reduced overall size, and is an easily implemented closed-loop scanner upgrade for instruments using Veeco NanoScope controllers (needs a Nano-Drive® controller with the AR-10 option). See the Nano-LP Series for a low profile, 3-axis piezo nanopositioning system.

Compatible Software Packages:
labview logometamorph logomicromanager logo   slidebook logo   image-pro logo


Nano-Bio200 Position Noise Spectrum

position noise power spectrum of Nano-Bio xy nanpositioning system demonstrating ultra low noise


Technical Specifications

Range of motion (Nano-Bio2M) 50 μm x 50 μm
Range of motion (Nano-Bio100) 100 μm x 100 μm
Range of motion (Nano-Bio200) 200 μm x 200 μm
Range of motion (Nano-Bio300) 300 μm x 300 μm
Resolution (50/100/200/300 μm) 0.1/0.2/0.4/0.6 nm
Resonant Frequencies (Nano-Bio100, Nano-Bio200, and Nano-Bio300)
X axis (100/200/300 μm) 450/400/260 Hz ±20%
Y axis (100/200/300 μm) 350/300/200 Hz ±20%
Resonant Frequencies (Nano-Bio2M)
X axis 500 Hz ±20%
Y axis 400 Hz ±20%
Stiffness 1.0 N/μm
θ roll, θ pitch (typical) ≤1 μrad
θ yaw (typical) ≤3 μrad
Recommended max. load (horizontal)* 0.5 kg
Recommended max. load (vertical)* 0.2 kg
Body Material Al (all models), Invar or Titanium (100 or 200μm only)
Controller Nano-Drive®
* Larger load requirements should be discussed with our engineering staff.


Additional Information

Nano-Bio100, Nano-Bio200, and Nano-Bio300 Drawing
xy piezo stage drawing


Bio-2M Drawing

xy piezo stage drawing
Nano-Bio Series Catalog Pages
catalog page of xy piezo nanopositioner
