Features
  • Compact design
  • Low profile: 0.8"
  • Center aperture: 0.25” diameter
  • Closed loop control


Typical Applications
  • High resolution Z-axis alignment
  • AFM
  • Metrology


Product Description

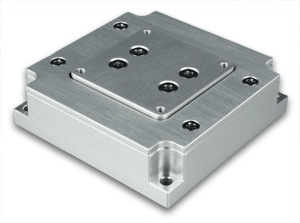

The Nano-MZ is a compact Z-axis nanopositioning system with a small center aperture designed to be easily integrated into existing instrumentation where space is restricted. Internal position sensors utilizing proprietary PicoQ® technology provide absolute, repeatable position measurement with picometer accuracy under closed loop control. A related model, the Nano-M3Z, includes additional “tip” and “tilt” motions (θXY) to the linear motion in the Z-axis. The Nano-MZ can also be used as a “building block” with other systems to form complex nanopositioning assemblies with multi-axis motion - see the Nano-M350 and the Nano-Man5.



Technical Specifications

Range of motion (Z) 25 μm
Resolution
0.05 nm
Resonant Frequency 1100 Hz ±20%
Stiffness 1.0 N/μm
Recommended max. load (horizontal)* 0.5 kg
Body Material Aluminum
Controller Nano-Drive®
* Larger load requirements should be discussed with our engineering staff.
