Features
 |
Typical Applications
|
Product Description |
|

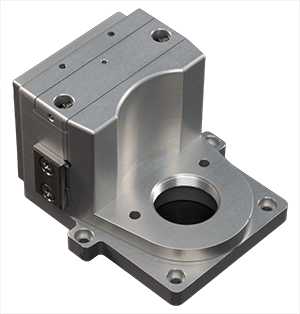

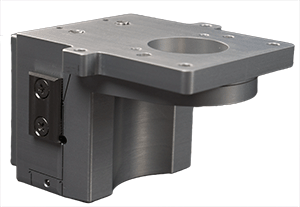

The Nano-F200z1-RMS is a piezo lens nanopositioner with 200 microns of travel. Internal position sensors utilizing proprietary PicoQ® technology provide absolute, repeatable position measurement for precise closed loop control. Extensive FEA of the mechanical design has resulted in a nanopositioning stage with very low off-axis motion. Further design choices, such as an integrated objective lens thread and slotted mounting locations make this the ideal choice for demanding imaging applications. The Nano-F200z1-RMS includes a calibrated control board module. The board includes the high voltage amplifier, closed loop feedback control, and on-board memory. The board module may be integrated into an enclosure of your choice and interfaces with the Mad City Labs nanopositioning API. The API is compatible with LabView, C, C++, and Python. Compatible Software Packages:   |
Technical Specifications |
|
| Range of motion | 200 μm |
| Resolution | 0.4 nm |
| Resonant Frequency (unloaded ) | 600 Hz ±20% |
| Resonant Frequency (150g ) | 250 Hz ±20% |
| Runout (θx) | 3 μrad |
| Runout (θy) | 20 μrad |
| Maximum load | 150 g |
| Body Material | Anodized Aluminum |
| Lens Thread | RMS |
| Mounting orientation | Upright / Inverted |
| Stage connector | DB-15 (male) |
| Compatible controller | Nano-Drive® board module |
| Controller connectors | USB, DB-15 (female) |
| Operational Temperature | 60° - 80° F |
| Storage temperature range | 70° - 160° F |
| * Larger load requirements should be discussed with our engineering staff. | |
Additional Information | |
Nano-F200z1-RMS |
