Features
  • XYZ objective lens piezo positioner
  • 100μm range of motion in all three axes
  • Interchangeable, quick mount adapters
  • Closed loop control


Typical Applications
  • Custom microscope scanning
  • 4Pi microscopy
  • Optical inspection



Product Description

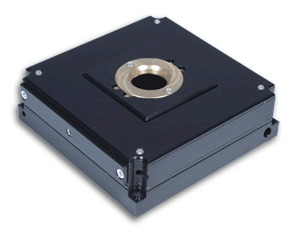

The Nano-F3D is an objective lens piezo nanopositioner designed to provide the unique capability of moving a lens in all three axes (XYZ). Simultaneous, three axis motions of up to 100 microns can be accomplished with sub-nanometer positioning resolution. As with all Mad City Labs piezo nanopositioning systems, the Nano-F3D uses proprietary position sensors on each axis to provide feedback for closed loop control. Compatible with RMS, M25, and M26 lens threads, the Nano-F3D can be used with most commercially available objective lenses. Threaded adapters are specified for each system when it is ordered. Extra adapters can be ordered separately.

Accessories are available for the Nano-F3D.

Compatible Software Packages:



Technical Specifications

Range of motion (X, Y, Z) 100 μm
Resolution 0.2 nm
Resonant Frequency (X/Y/Z) 300/200/400 Hz ±20%
Stiffness 1.0 N/μm
Recommended max. load* 0.5 kg
Body Material Aluminum and Brass
Threaded Adapters RMS, M25, M26
Controller Nano-Drive®
* Larger load requirements should be discussed with our engineering staff.
