Features
  • Open Loop Control
  • Low Noise
  • High Stability
  • High power
  • Output Voltage: 0 to 150V
  • Compatible with Mad City Labs piezo actuators



Product Description

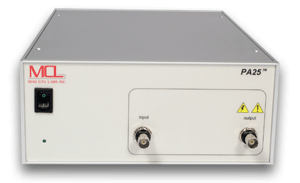

The PA25 is a single channel amplifier suitable for driving low voltage (150V) piezo actuators. The PA25 amplifier combines low noise and outstanding stability with high power output, making it ideal for open loop, high resolution control of piezos. The PA25 is equipped with a front panel analog input BNC for high precision command voltage control. A single channel high voltage (0 to 150V) output is conveniently located on the front panel. This high voltage BNC connector can be interfaced to our bare piezoactuators for precision motion applications.


Technical Specifications

Analog Input 0V to +10V
Command Signal Input Impedance 10kΩ
Gain (0 to 10V input) 15Vout/1Vin
Amplifier Output Voltage 0V to +150V
Maximum Drive Current (continuous) 160mA
Power Output (continuous) 10W
Output Impedance 10Ω
Output Noise < 50μVrms
Output Short Circuit Protection YES
Steady State Power Consumption <0.5W
Current Consumption (max.) 500mA

-3dB Bandwidth

No Load (200mVp-p input) 32kHz
No Load (10mVp-p input) 32kHz
1.0μF Load, current limited 550Hz

General

AC Input Voltage 100 to 240 VAC
AC Input Frequency 60/50Hz
AC Input Power (max.) 30W
Analog Input BNC
High Voltage Output BNC
Operating Temperature 5°C to 40°C
Dimensions 12" x 8.375" x 3.5"
305mm x 213mm x 89mm)
